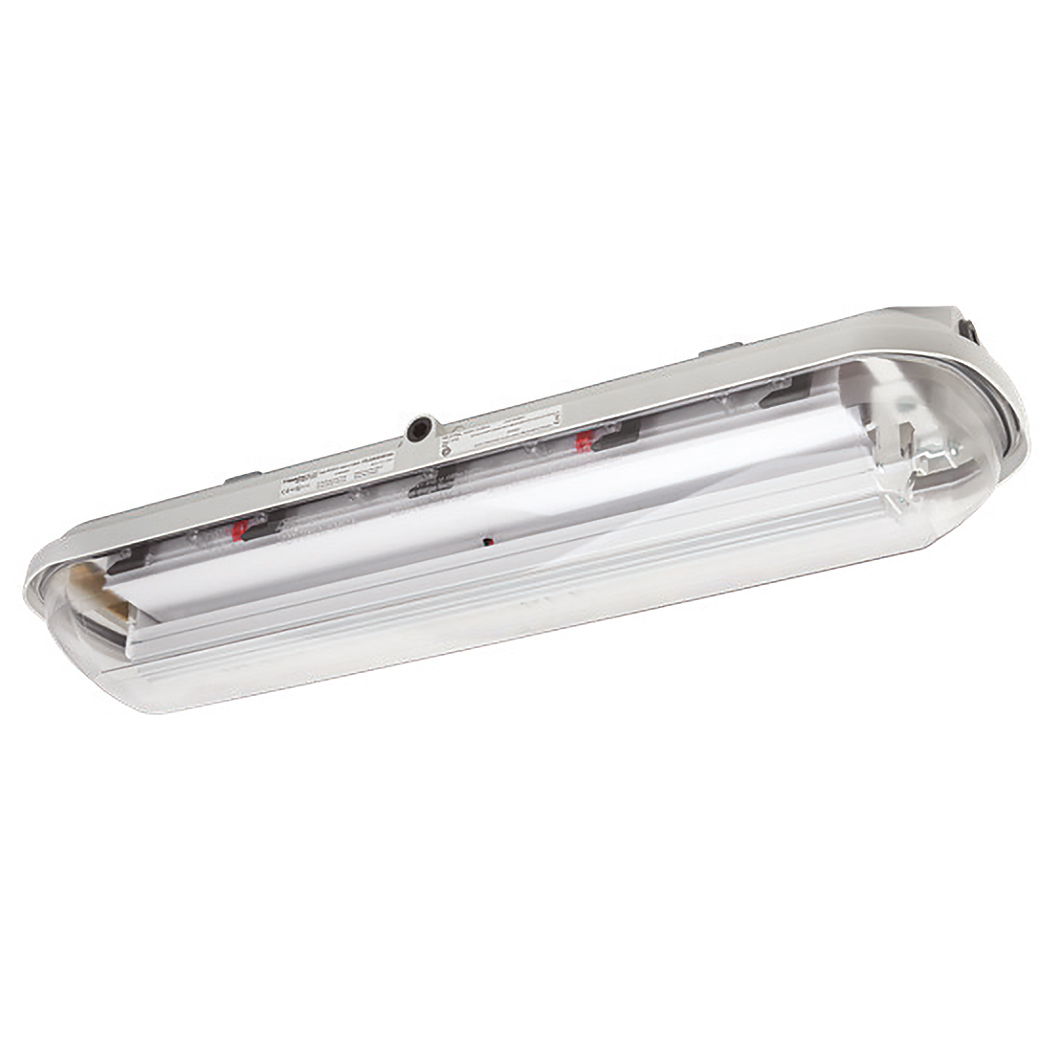

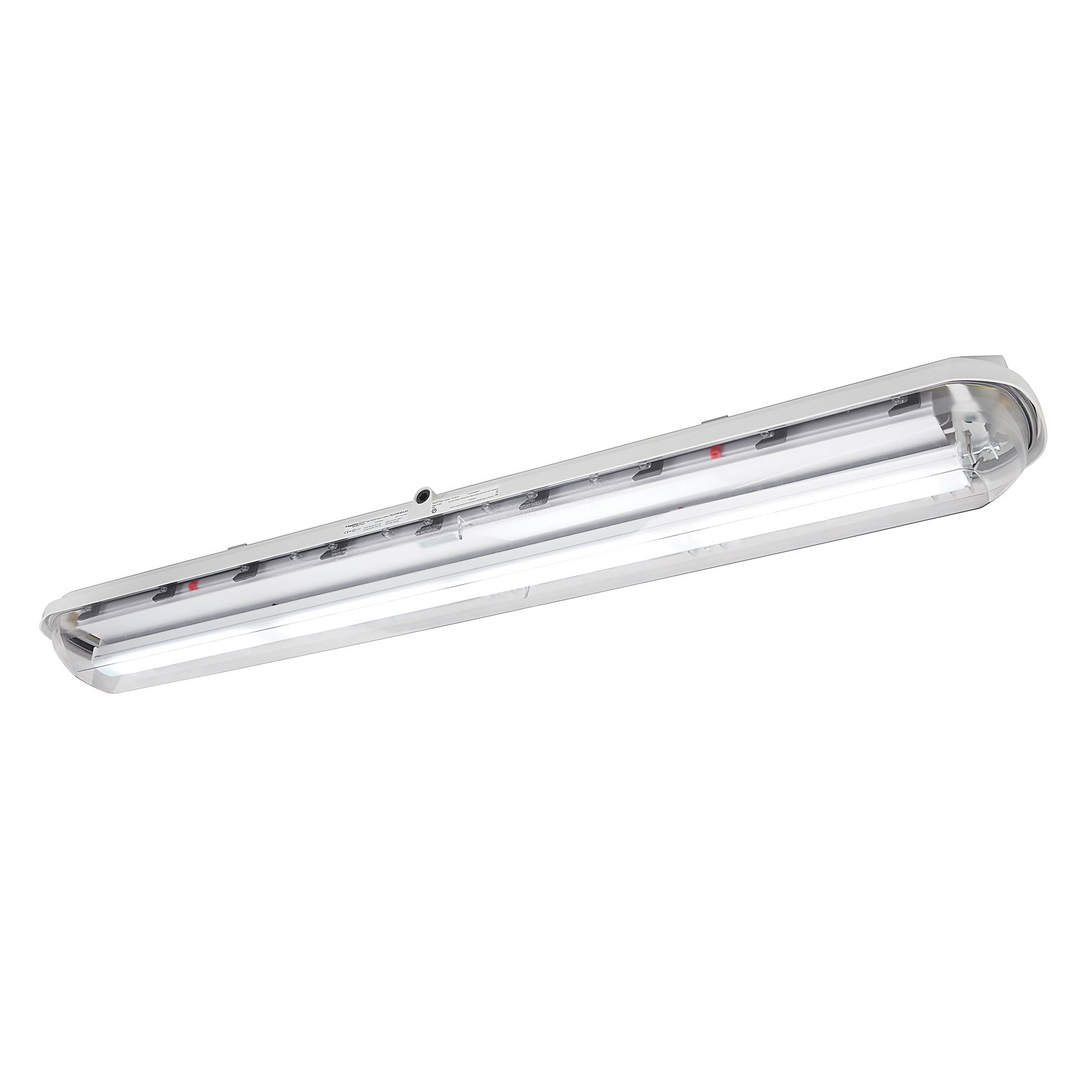

Emerson Appleton™ ATX™ FELED Series Nonmetallic LED Zone 1 Luminaires
1600-7200 lumens, 60000 hours+ life, high power factor, battery backup
Certification Type Zone 1, 2, 21, 22.
Produktnummer:
FELEDBU/ FELEDIBU
BESKRIVELSE
ATX™ FELED Series Nonmetallic LED Luminaires are easy to install, easy to maintain non-metallic linear fixtures. It is available in either a standard or an emergency battery back-up version. The FELED is ideal for use in Zone 1 and Zone 21 locations and provides 2,500 to 7,200 lumens to fit a wide variety of applications. They can easily retrofit existing fluorescent fixtures as they maintain the same look and feel. The FELED utilizes the same footprint and mounting accessories; saving time, labor and money.
Suitable locations where:
- Hazardous areas are designated as Zone 1, and 2, 21 and 22
- A high degree of corrosion resistance is required
- Protection against dirt, water and moisture is necessary
Typical applications include:
- Oil refineries
- Petrochemical facilities
- Food processing plants
- Waste and water treatment plants
- Underground tunnels
- General manufacturing facilities
Model overview
| Model number | Nom. lumens | Watt | Efficacy (lpw) | Power factor |
| FELED3BU/ FELEDI3BU | 1600-3000 | 31 | 52-99 | >0.96 |
| FELED4BU/ FELEDI4BU | 2100-4200 | 44 | 59-95 | >0.96 |
| FELED5BU/ FELEDI5BU | 2600-5300 | 50 | 52-106 | >0.98 |
| FELED7BU/ FELEDI7BU | 3400-7200 | 75 | 46-96 | >0.97 |
SPESIFIKASJONER
Features
| Easy to retrofit in same mounting footprint as Appleton’s FE series nonmetallic fluorescent luminaires | |
| Corrosion-resistant fiberglass reinforced polyester body and hinged polycarbonate lens | |
| High impact resistance housing (20 Joules – IK10) from -30 °C to +55 °C ambient temperature and wind profile for use in extreme offshore and onshore environments | |
| 60,000+ hour LED life at +55 °C | |
| Lightweight design, hinged cover with captive screws, and terminal block wiring for easy installation and maintenance | |
| Standard screw-type terminal block can accept 1.5 to 6 mm2 wire | |
| Industry-leading thermal management for safe, reliable operation over wide temperature range | |
| Universal, high efficiency, drivers cover voltage requirements for 120-277 Vac, 170‑300 Vdc, 50/60 Hz +/- 10%. | |
| Standard 6KV surge suppression | |
| Latch assembly and elastomer gasket seals against water and dust ingress, IP66 | |
| Central opening with unique patented release system to prevent damage | |
| Can be horizontally or vertically mounted | |
| Available in 3 hour emergency version | |
| Positive safety switch disconnects power to LED’s and driver to allow maintenance in hazardous locations (emergency) | |
| Available in 5000K and 4000K color temperatures | |
| Meets Photobiological Requirement for Risk Group 0 (RG0) |
Standard materials
| Housing: fiberglass reinforced polyester | |
| Lens: polycarbonate | |
| Diffuser: polycarbonate | |
| Gasket: elastomer | |
| Internal reflector: highly reflective white polycarbonate (standard versions) or powder coated aluminum (emergency versions) | |
| Mounting accessories available in different materials such as gray painted aluminum, zinc plated steel, galvanized steel or 316 stainless steel |
Options
| 3 Hours Emergency / Battery Back-Up available |
