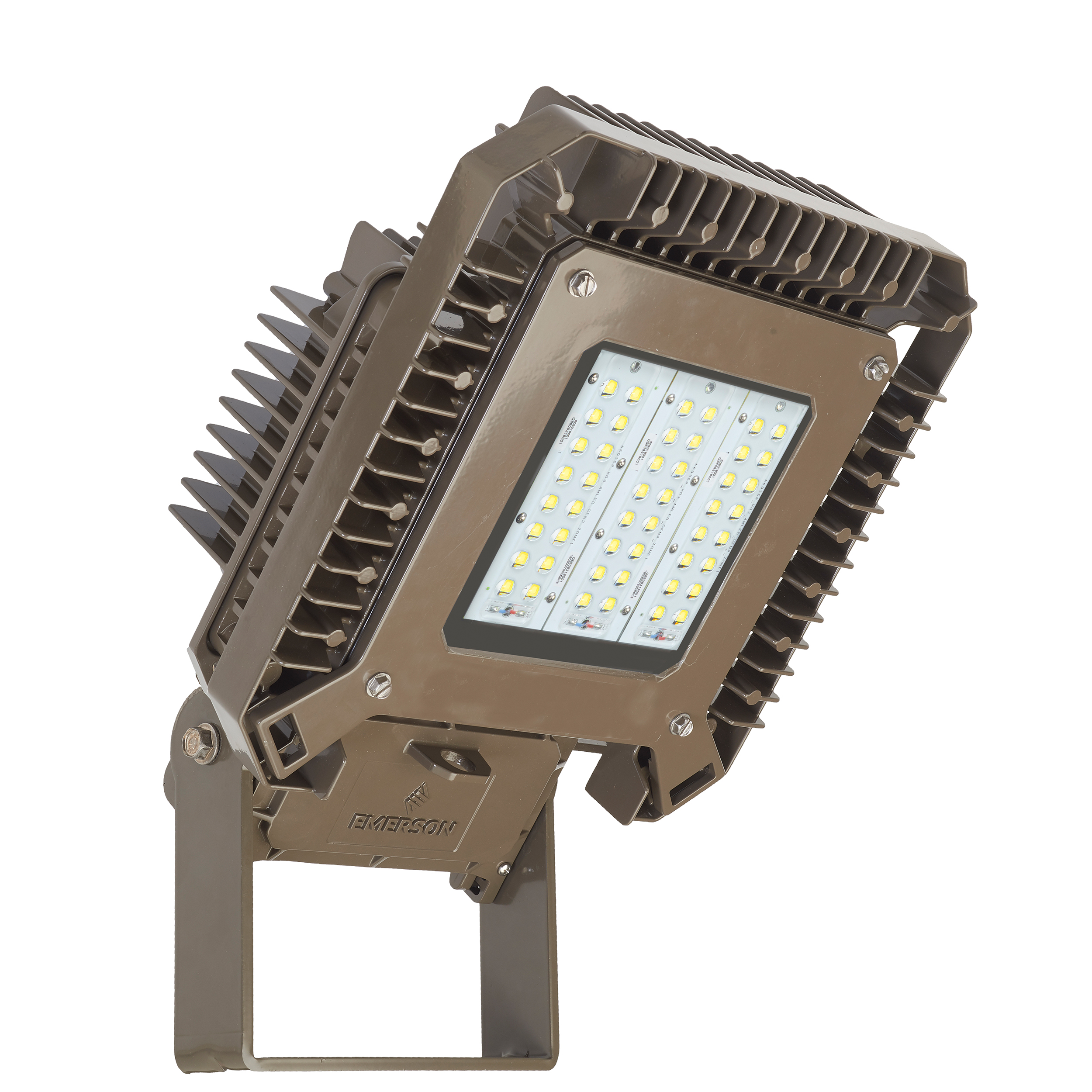

Emerson Appleton™ Areamaster™ Generation 2 HL LED Zone 1 Luminaire
23000 – 36000 lumens, ATEX/IECEx, IP66/67, 5 years warranty
Certification Type Zone 1, 2, 21, 22.
Produktnummer:
AMHZL
BESKRIVELSE
The Appleton Areamaster Generation 2 Zone 1 LED luminaires by Emerson deliver best-in-class LED performance. The redesigned Areamaster provides greater versatility, with models from 9,000 to 19,500 lumens and from 24,000 to 38,000 lumens for the High Lumen version, and a choice of beam patterns to meet your diverse floodlighting needs. Featuring new optic designs for superior uniformity and coverage, the Areamaster Generation 2 LED luminaires provide HID equivalent lighting that saves over 75 percent in energy costs and practically eliminates maintenance burdens. They are certified for ATEX/IECEx Zones 1 and 21.
For use in locations where:
- Hazardous areas designated as: Zone 1, 2, 21 and 22
- A high degree of corrosion resistance is required
- Protection against gas, dust, water and moisture is necessary
Typical applications include:
- Oil and Gas Refineries
- Petrochemical Plants
- Foundries
- Pulp and Paper Mills
- Food and Beverage Processing Facilities
- Power Plants
- Water and Wastewater Treatment Facilities
Model overview
| Model number | Nom. lumens | Watt | Efficacy (lpw) | HID/HPS equivalent |
| AMHZL1 | 23000 | 166 | 139 | 1000 W |
| AMHZL2 | 28500 | 206 | 138 | 1000-1500 W |
| AMHZL3 | 36000 | 278 | 130 | 1500 W |
SPESIFIKASJONER
Key features
| Separate field wiring compartment with screw terminal block | |
| Yoke bracket is designed to accommodate traditional Areamaster brackets and slipfitters for easy retrofit | |
| Choice of color temperature (CCT): 5000K cool white, 4000K neutral white or 3000K warm white | |
| Rugged and compact housing with superior thermal design translates to long luminaire life | |
| Heavy duty, high temperature silicone rubber gaskets | |
| Thermal shock and impact resistant clear or frosted glass lens | |
| Standard 6Kv surge protection | |
| Captive fasteners secure on piece lens | |
| Field replaceable LED driver and lens cover | |
| Photobiological safety rating: Risk Group Zero (RG0) with frosted glass; Risk Group One (RG1) with clear glass) |
Standard materials
| Housing and lens door: copperfree aluminum (4/10 of 1% maximum) | |
| Gaskets: silicone rubber | |
| Yoke: zinc plated HR steel | |
| Bolts: stainless steel | |
| Close up plugs: (1) aluminum provided | |
| Guard and safety cable: stainless steel | |
| Visor: aluminum |
Standard finishes
| Housing, lens cover, visor and yoke mount: architectural bronze polyester |
Options
| Improved safety cable design with multiple retention points, purchase separately | |
| Guard and visor available, purchase separately | |
| Slip-fitters and mounting brackets available for easy pole or wall mounting |
DOKUMENTASJON
| Brochure: |
Emerson Appleton™ LED Luminaires
|
| Datasheet: |
Areamaster Generation 2 HL LED ATEX Zone 1, 2, 21 and 22
|
| Technology and Application Guide: |
Emerson Appleton™ Areamaster™ Generation 2
|
| Selection Guide: |
Appleton™ LED Luminaires Selection Guide for ATEX/IECEx
|
