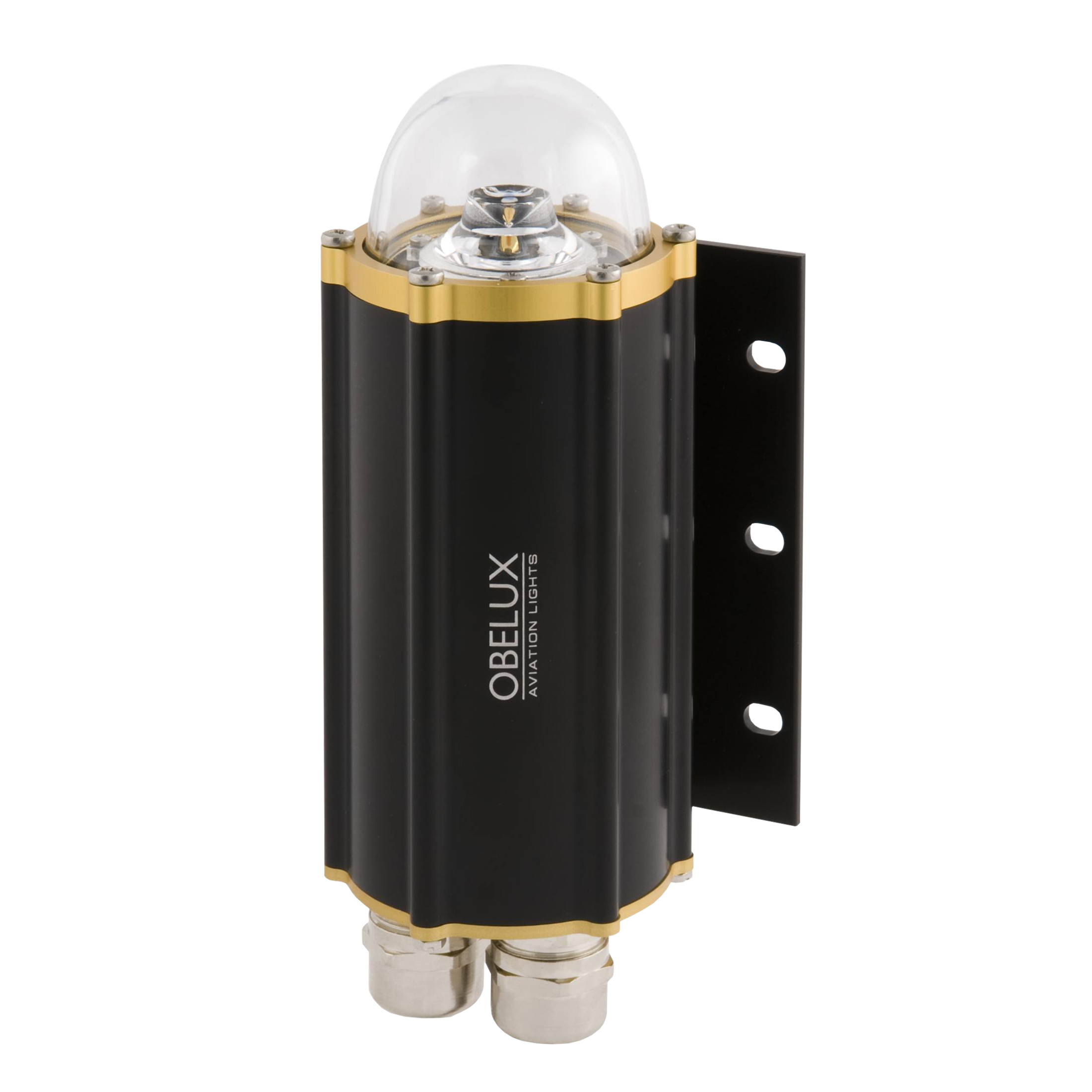

Obelux Low-Intensity 10cd and 32cd obstruction lights
ICAO, kan seriekobles, blinkfunksjon mulig med kontroller, horisontal 360°
Produktnummer:
LI-10 and LI-32
BESKRIVELSE
Obelux low-intensity light is designed for marking tall structures such as wind turbines, chimneys, masts, cranes, airports, and towers. Obelux low-intensity lights have extremely low power consumption and long maintenance-free operating time. The light can be daisy-chained by using two cable glands located on the bottom.
Key features
- Based on LED-technology
- Low-intensity RED fixed light (flashing with external controller)
- Two cable glands - easy to chain without external junction boxes
- Extremely low power consumption
- Provides long maintenance-free operating time
- 5-year warranty
- Made in Finland
SPESIFIKASJONER
Optical characteristics
| 10cd fixed or 32cd fixed | |
| Flashing operation available with external controller | |
| Colour Red | |
| Horizontal beam 360° | |
| Vertical beam >10° |
Specifications met
| ICAO International Standards and Recommended Practices: Aerodromes Annex 14 Volume 1, 7th Edition, July 2016, Chapter 6: Low-intensity Type A/B/E | |
| FAA Advisory Circular (9/28/2016), AC 150/5345-43H: L-810 / L-810 (F) | |
| Einordnung als Hindernisfeuer ES gemäß, Allgemeine Verwaltungsvorschrift zur, Kennzeichnung von Luftfahrthndernissen, vom 26.08.2015 |
